China LCD Display Factory Customized VA type COB LCD modules for Battery
Product Summary
Factory-customized VA segment LCD displays for thermostats. Features wide temp range (-30℃ to +80℃), multiple viewing angles, and RoHS compliance. Custom options for size, voltage, and connectors available.
Basic Properties
country of origin
Hunan, China
Brand Name
OEM/ODM
Trading Properties
MOQ
100 pieces
unit price
$3.0-3.3/ piece
Product Details
Type:
Customzied Lcd Display
Display Size:
Customized
Supplier Type:
Factory Supply
Product Description
Detailed Specifications & Features
Baiyou Technology
China LCD Display Factory Customized VA type COB LCD modules for Battery
| NO. | ITEM | SPECIFICATIONS |
|---|---|---|
| 1 | Product Name | Customized TN HTN STN FSTN VA LCD Display Modules |
| 2 | Operating Voltage | VDD 2.8~5.0V |
| 3 | Operating Temperature | -30~+80℃(max.) |
| 4 | Connector |
PIN/ Zebra/ FPC, etc. |
| 5 | View Direction |
3/6/9/12 O'clock |
| 6 | Backlight | RGB/LED; With or No |
| 7 | Display Color | Gray, Black, Blue, Yellow-green, White |
| 8 | Polarizer Type |
Reflective/ Transflective/ Transmissive |
| 9 | Driver IC |
Optional |
| 10 | RoHS Compliant |
Yes |

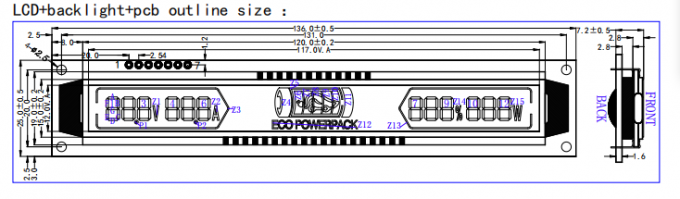

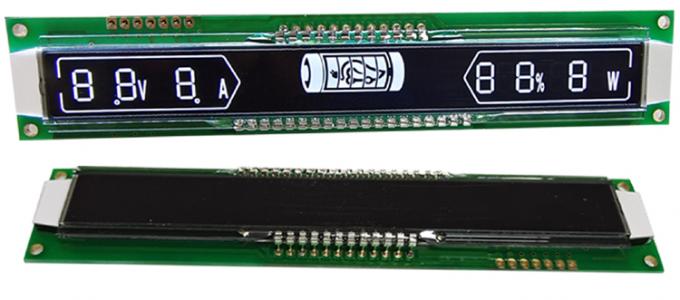

VA TYPE COB LCD Modules for Battery
Customized LCD informations :
| Item | Contents |
|---|---|
| Construction: | lcd,cog,lcd+bl,lcd+bl+cob,according to your requiremts |
| LCD type: | VA(NBT/EBN/IBN),TN, HTN, STN, FSTN, FFSTN/DFSTN |
| Polarizer: | Transflective, Transmissive, Reflective, Anti-Glare, Anti-UV |
| Background: | Gray, Yellow-Green, Blue, Black,white |
|
Viewing direction: |
6:00, 12:00, 3:00, 9:00, Customization |
| Operating temperature: | 0 ℃ to 50 ℃, -20 ℃ to +70 ℃, -30 ℃ to +80 ℃, -30 ℃ to +85 ℃, Customization |
| Storage temperature: | -10 ℃ to +60 ℃, -20 ℃ to +70 ℃, -30 ℃ to +80 ℃, -40 ℃ to +90 ℃, Customization |
| Drive Method | Static or dynamic |
| Votage(VOP): | according to your requirement |
| Connection: |
Metal PIN, Rubber/Zebra, Heat seal, Flat cable(FPC) |
